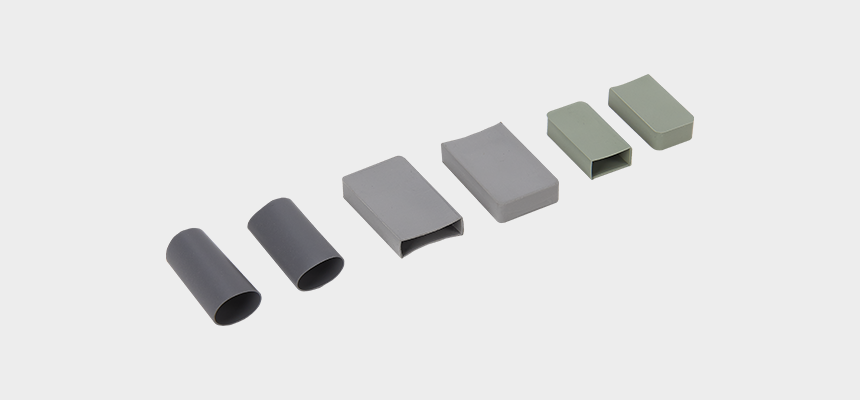

Power TR 의 절연 및 방열 용도
| Test Item | Test Method | Unit | Typical Values |
| Color | - | - | Gray |
| Thickness | ASTM D 374 | mm | 0.45±0.025 |
| Breaking Strength | ASTM D 1458 | kN/m | 33 |
| Elongation | ASTM D 395 | % | 110 |
| Hardness | ASTM D 395 | Shore A | 70±5 |
| Construction | - | - | Silicone |
| Hardness Change | ASTM D 573 | Shore A | 6 |
| Tensile Change | ASTM D 573 | % | 50 |
| Elongation Change | ASTM D 573 | % | -25 |
| Volume Resistivity | ASTM D 573 | Ω/㎝ | 2.6×1015 |
| Dielectric Breakdown Voltage | KV/0.45m/m | 6.1 | |
| Dielectric Constant | ASTM D 150 | 10KV Hz | 5.98 |
| ASTM D 150 | 1M Hz | 5.85 | |
| Dissipation Factor | ASTM D 150 | 10KV Hz | 0.009 |
| ASTM D 150 | 1M Hz | 0.008 | |
| Arc Resistance | ASTM D 495 | Sec | 250 |
| Continuous Use Temp | EN344 | ℃ | -40~+210 |
| Coefficient of Thermal Conduction | Cal/㎝ Sec℃ | 2.6×10-3 | |
| Thermal Conductivity | ASTM D 5470 | w/m.K | 0.8 |
| Volume Change | 24hr 25℃ Water | ％ (0.45m/m) | 0.20% |
| Specific Gravity | ASTM D 792 | - | 1.5 |
