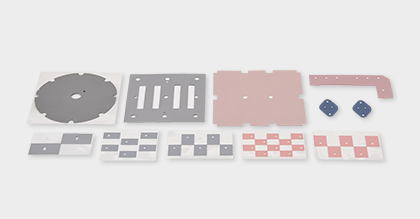

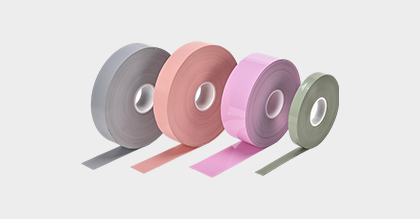

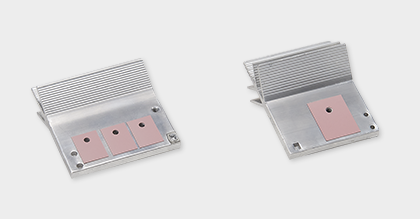

얇은 두께의 실리콘 시트로 방열 및 절연 용도
단,양면 점/접착성 부여가능
| Test Item | Test Method | Unit | Typical Values | ||
| Color | - | - | Gray / White / Blue | ||
| Thickness | ASTM D 374 | mm | 0.23±0.025 | 0.3±0.025 | 0.45±0.025 |
| Specific Gravity | ASTM D 792 | - | 1.6 | 1.6 | 1.6 |
| Elongation | ASTM D 412 | % | 8~12 | 7~10 | 7~11 |
| Hardness | ASTM D 395 | Shore A | 75±5 | 65±5 | 65±5 |

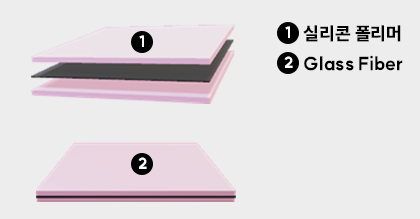

| Construction | - | - | Silicone / Fiberglass | ||
| Tensile Strength | ASTM D 412 | kgf/cm2 | ＞197 | ||
| Tear Strength | ASTM D 1485 | kgf/cm | ＞6.7 | ||
| Volume Resistivity | ASTM D 573 | Ω/cm | 2.6×1015 | ||
| Dielectric Breakdown Voltage | KV | 4 | 5 | 6.2 | |
| Coefficient of Thermal Conduction | Cal/cm Sec℃ | 3.0×10-3 | |||
| Continuous Use Temp | EN 344 | ℃ | -40℃~210℃ | ||
| Flame Rating | UL-94 | - | V-0 | V-0 | V-0 |
| Thermal Conductivity | ASTM D 5470 | w/m.K | 1.65 | 1.05 | 0.8 |
