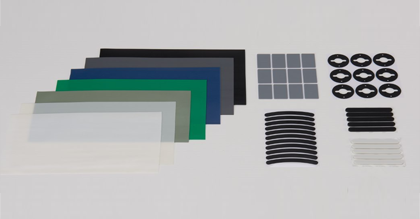

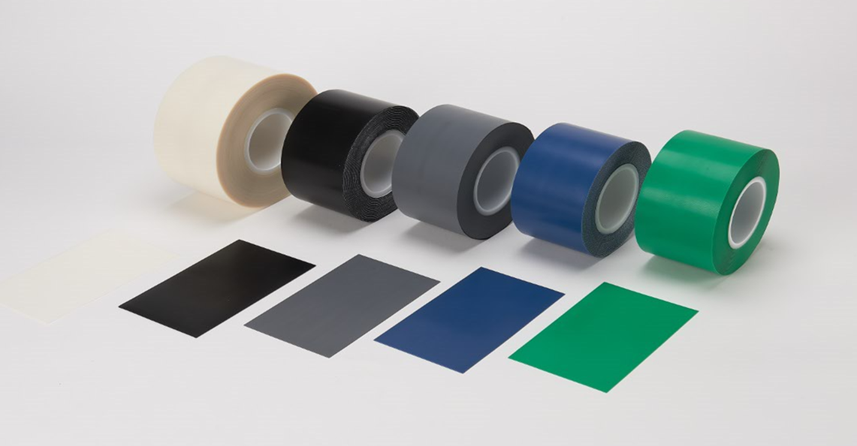

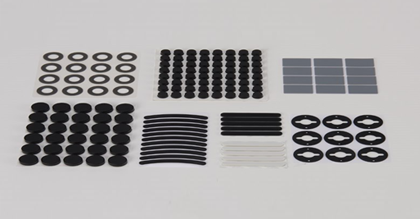

실리콘시트는 HTV원료로 -40~180℃까지 사용 범위가 가능하며 내열성 및 전기 절연성, 복원력이 우수한 제품으로 단면점착처리가 되어있어 탈부착이 용이한 제품입니다.
LCD BLU Observer Space Panel Silicone Sheet is general purpose type heat cured compounds for compression molding. LCD TV. PDP TV. LCD MONITOR. NAVIGATION . GASKET…. ex) LCD : Between a Mold Frame and a Lamp Reflactor
| Uncured compound | Uncured compound |
| Appearance | Translucent |
| Williams Palsticity | 160 |
| Cured compound (1st cure 10min at 170℃, 2nd cure 4 hours at 200℃) | |
| Curing agent | 2.5-dimethyl-2.5-t-butylhexane peroxide |
| Content of Curing agent % | 0.5 |
| Mechanical Properties (JIS K6249) | |
| Specific gravity (25℃) | 1.13 |
| Hardness (Type A) | 42 |
| Tensile strength MPa | 8.3 |
| Elongation % | 700 |
| Tear strength N/mm | 26 |
| Linear shrinkage % | 4.1 |
