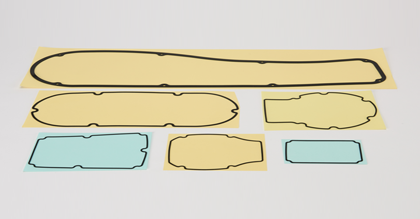

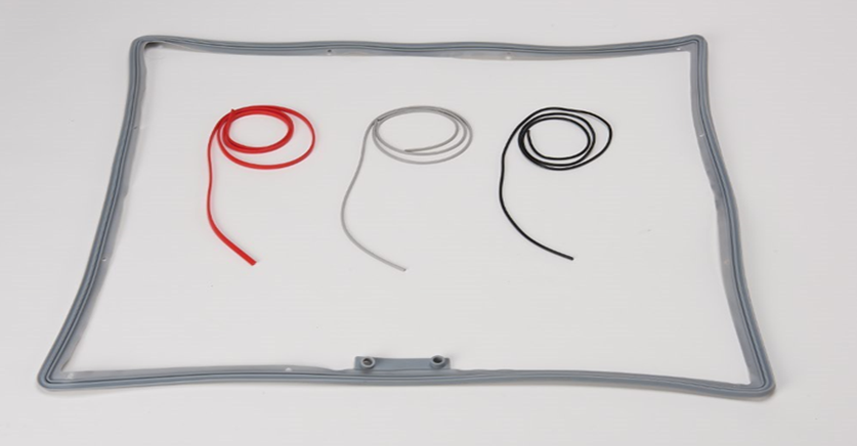

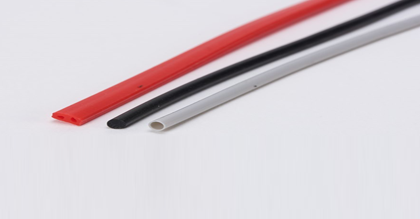

실리콘가스켓은 HTV원료로 -40~180°C까지 사용범위가 가능하며 내열성 및 전기 절연성, 복원력이 우수한 제품으로 단면 점착처리가 가능하며 탈부착이 용이한 제품입니다.
LCD BLU Observer Space Panel Silicone Sheet is general purpose type heat cured compounds for compression molding. LCD TV. PDP TV. LCD MONITOR. NAVIGATION . GASKET…. ex) LCD : Between a Mold Frame and a Lamp Reflactor
| Uncured compound | Uncured compound |
| Appearance | Translucent |
| Williams Palsticity | 160 |
| Cured compound (1st cure 10min at 170℃, 2nd cure 4 hours at 200℃) | |
| Curing agent | 2.5-dimethyl-2.5-t-butylhexane peroxide |
| Content of Curing agent % | 0.5 |
| Mechanical Properties (JIS K6249) | |
| Specific gravity (25℃) | 1.13 |
| Hardness (Type A) | 42 |
| Tensile strength MPa | 8.3 |
| Elongation % | 700 |
| Tear strength N/mm | 26 |
| Linear shrinkage % | 4.1 |
